Vegetable Processing Machine S40, Cabbage shredder 500-1000 kg/h,
electric slicer, grater, coleslaw, julienne cutter

Send inquiry to receive machine pricing and delivery costs.

​​Compact size, high productivity food processing machine

The commercial vegetable processing machine, cabbage shredder S40 is a productive, compact size commercial food processing machine that is intended for cabbage shredding, slicing, grating as well as beets, carrots grating, julienne cutting. High productivity 500-1000 kg/h, high-quality materials as food-grade stainless steel AISI 304. Made for small and middle-size producing companies.
General Features:
  • Productivity 500-1000 kg/h;
  • High quality, long-lasting stainless steel cutting knives (up to 100 tons
  • between sharpening);
  • Disc diameter of 40 cm, grants, that you can cut small cabbage heads that are sliced in half. (Full cabbage heads can cut model S55, S65)
  • Universal cutting machine, very good for slicing, grating, mashing,
  • julienne stick cutting;
  • Compact size, can be equipped with wheels and easily transported;
  • Easy to clean, can be washed with low-pressure water;
  • All food contact elements made of stainless steel;
  • Powder painted frame, three-layer lacquer in the standard version, or full stainless steel version(in pictures);
  • Machine motors can be adjusted as required up to 2200 W.
  • Electric connection 400/220/110 Volts, 50-60 Hz. For different connections, please, ask
Mainly used by:
  • Sauerkraut, Kimchi, Salad producers
  • Vegetable, salad producing and whole selling companies
  • Restaurant and fast-food chains
  • Animal food producers, zoo's
  • Special request for machine ​​
What type of machine, accessories and disks do you need?​
Receive your individual offer faster by filling this form

Technical information

All available discs

SLICING DISC 5 BLADES

Fixed cutting thickness 0-12 mm

EXCELLENT FOR

High productivity disc with 5 blades - especially good for cabbages, lettuce, cucumbers, onions, apples etc.

SLICING DISC 2 BLADES

With adjustable cutting height 0-8 mm

EXCELLENT FOR

When need to cut different size slices with one disc. For cabbages, lettuce, and other vegetables.
DISC FOR COLESLAW 5 BLADES

Fixed slicing thickness 0-6 mm

EXCELLENT FOR


Short cabbage cutting, coleslaw salads
GRATING DISC 3 MM

Intended for grating carrots, beets and cabbages for salads.

EXCELLENT FOR


Cheese, carrots, beets, potatoes, etc
GRATING DISC 4 MM

Intended for grating carrots and cabbages for salads.

EXCELLENT FOR


Carrots, pumpkins, onions, potatoes, etc
JULIENE STICK CUTTING DISC 2,5 X 2,5 MM


EXCELLENT FOR


Carrot, cucumber, zucchini stick cutting for salads.

MASHING DISC



EXCELLENT FOR


Mashing fresh potatoes, horseradish as well as cheese grating

Here you can see additional options

The machine mainly is used for cabbage slicing - sauerkraut, kimchi, grating carrots and depending on customer needs is customizable. The machine can be fully made of stainless steel. Motor power can be increased to 1100 W / 1500 W or 2200 W.
AVAILABLE DISCS
Slicing, coleslaw cabbage, grating, julienne stick cutting, mashing discs
CONE HOPPER

Is excellent, when a grating is an important part of vegetable processing. That allows pouring vegetables from buckets easily.

HOPPER WITH PUSHER

Is intended for Korean carrot salads, Julien. When the additional pushing force is required.

HOPPER WITH SAFETY LID

Hopper with cover works only when the lid is closed. When the lid is open, the motor is turned off.

HOPPER WITH TUBES
Is intended for vertical vegetable cutting - carrots, cucumbers, lettuce, paprika. Get round slices.

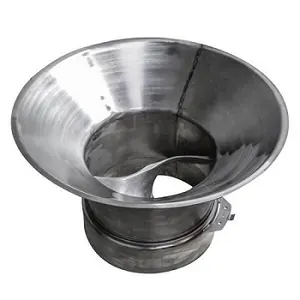

Conical hopper

Pouring in vegetables in large amounts. In order to throw in a large number of vegetables in the machine, the conical hopper is needed.
Then you can throw them in just from box.

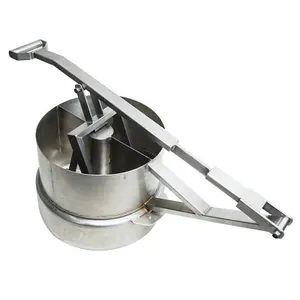

Hopper with pusher

Is intended for Korean carrot salads, Julien. When the additional pushing force is required.

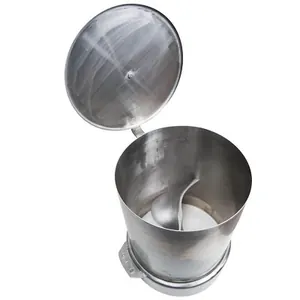

Hopper with safety lid

Increased working safety is possible by adding a cover with a safety switch. It is perfect for everyone cautious about the safety of the equipment, As an opening of the cover immediately stops the blades, thus reducing any risk for the worker, especially if the worker has limited experience with various industrial machines. However, due to the fact that the machine is stopping all the time and it is necessary to restart the engine, the productivity of the machine is lower.

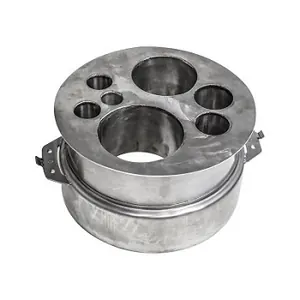

Hopper with tubes

Cutting in a vertical position requires the use of an additional adapter hopper. It consists of a guide tube and pipe diameters. There is a possibility to have different sized pipes for various types of vegetables. Mainly is used for cutting carrots, cucumbers, lettuce, and other vegetables in slices.

Spring guards

1. Basic spring guard
Basic spring guard can be used for all kinds of products.

2. Curved spring guard

Curved spring guard is best for cabbage shredding. Good for carrot, potato grating

3. Inclined spring guard

Inclined spring guard is intended for cheese, vegetable grating and mashing. Good for carrot, potato grating.
